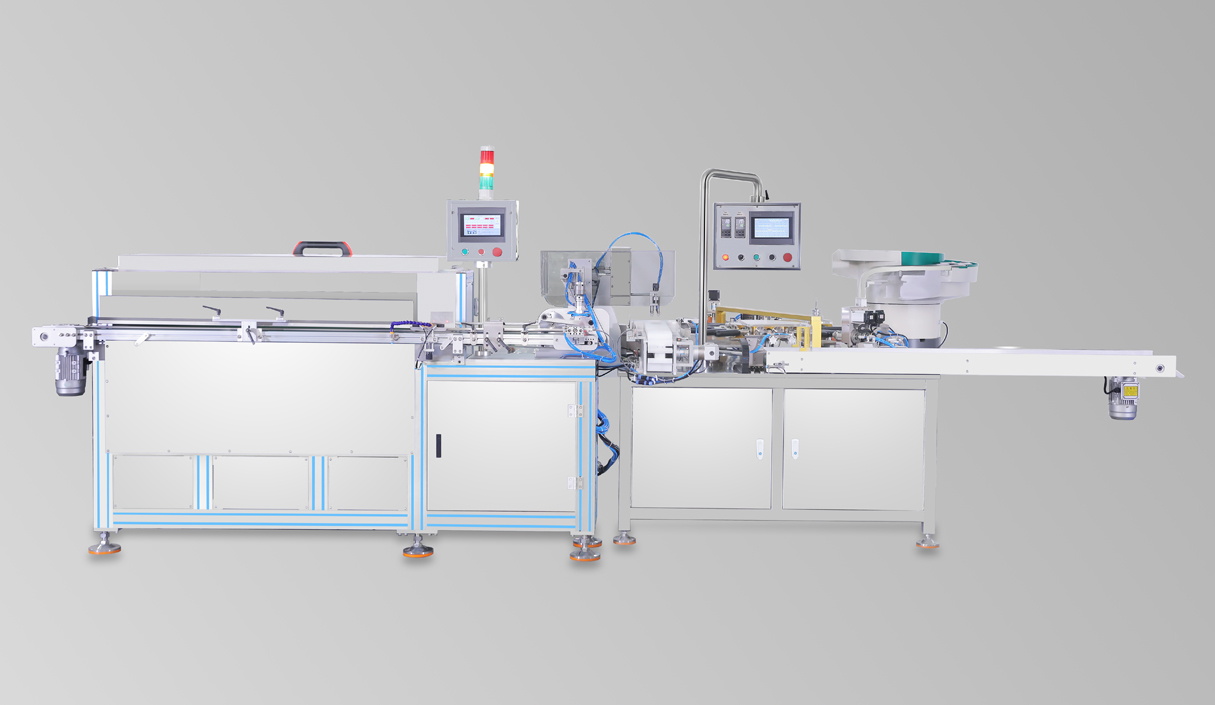

Automatic Tube Capper

MC-SC100PRO

Overview

Specifically designed for production of laminate tubes used in oral care, personal care, and pharmaceutical applications. This model is specifically designed to achieve high production efficiency.
It incorporates advanced and practical automation technologies to ensure seamless overall operation. The main unit features eight workstations, enabling it to meet a wide range of customer requirements.
It‘s compatible with both aluminum-plastic laminate tubes (ABL) ,plastic laminate tubes (PBL) and extrdued tube (PE)

Advantage
High speed automatic tube loading and arranging
Two sets foil cutter, high capacity and quality
Available for all kind of screw-on caps
Easy and quick size tooling changeover
Technical data

Production speed80-100 PCS/MIN

Tube diameter16-50 MM

Tube length60-200 MM

Power supply220V, 50HZ

Rated power5.0 KW

Compressed air≥0.6 MPA

Dimension5.0*2.5*1.6 M

Weight1.10 T
